| Business Type | Manufacturer, Trader |
| Country of Origin | India |
| Certification | CE Certified |
| Condition | New |
| Click to view more | |
Product Details
Driven Type
Mechanical
Brand Name
TCP
Material
Stainless Steel
Application
End Flange Drilling
Phase
Three Phase
Operating Mode
Automatic
Machine Structure
Horizontal
Total Carbohydrate
1 Year
Payment Terms
Other
Delivery Time
4 WEEK

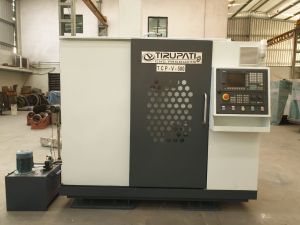

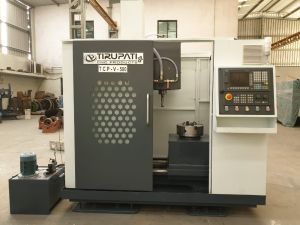

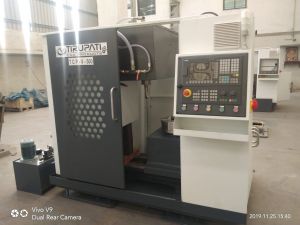

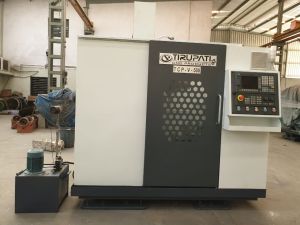

We offer TCP-VX-500 3 Axis VMC Drilling Machine to our clients.
Specifications:
- Maximum Pitch Circle Dia (PCD) Max. OD. 500 mm
- Maximum Drilling Capacity (U-Drill) 40 mm
- Width of Base: 375 mm
- X-Travel: 250+25 mm
- Y-Travel: 500+25 mm
- Z-Travel: 400 mm
- X-Axis Type: Box Guideways
- Y-Axis Type: Hardend and Ground
- Z-Axis Type: 35 LM Guide Ways
- Spindle to Chuck Distance: 300 mm
- Controller: Siemens
- Clamping Chuck 300 x 4 Jaw Manual
- Maximum RPM: 2000 RPM
- Spindle Main Motor: 10 HP
- Lubrication System: Auto
