| Business Type | Manufacturer, Trader |
| Material | Stainless Steel |
| Driven Type | Mechanical |
| Operating Type | Automatic |
| Click to view more | |
Product Details
Brand Name
TCP
Spindle Motor
5HP
Machine Weight
4000-6000 Kg
Product Code
TCP-H-600X1500L
Payment Terms
Other
Delivery Time
4 WEEK

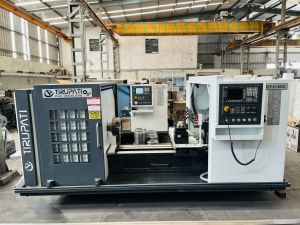

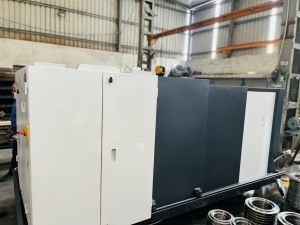

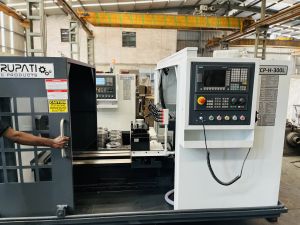

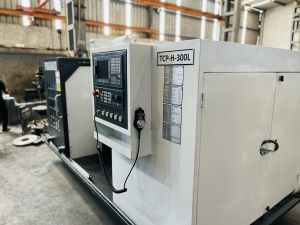

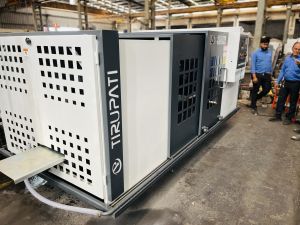

We offer TCP-H-600L-1500MM CNC Lathe Machine to our clients.
Capacity:
- Maximum Turning Diameter: 1000 mm
- Standard Turning Diameter: 800 mm
- Turning Length: 300 mm
- Width of Bed: 750 mm
- Height of Center: 600 mm
Spindle:
- Spindle Nose: A2-8
- Max. Bar Capacity (In Hollow Chuck): 70 mm
- Spindle speed (Max.) 600 RPM
- Spindle Motor Power: 25 HP
- Standard Power Chuck Size: 530 x 3 Jaw (Closed Chuck)
Axis:
- X-Axis Stroke: 500 mm
- X-Axis Rapid: 6m/Minute.
- X-Axis Guideways: Box Type
- Z-Axis Stroke: 300+25 mm
- Z-Axis Rapid 5m/Minute.
- Z-Axis Guideways: Hardened And Ground
Tooling:
- Turret Make: Pragati
- No. of Station: 4
- Maximum Boring Bar Diameter: 50 mm
- Turning Tool Size: 32 x 32 mm
Lubrication System:
- Auto
Tailstock:
- Tailstock Quill Travel: 200 mm
- Tailstock Quill Diameter: 75 mm
- Tailstock Quill Taper: MT-5
General:
- Controller: Siemens/Fanuc
- Base Type: Cimoga
- Overall Dimension (L x W x H): 3600 x 2100 x 2200 mm
- Overall Weight: 5000 Kg
- Accuracy: 0.05
