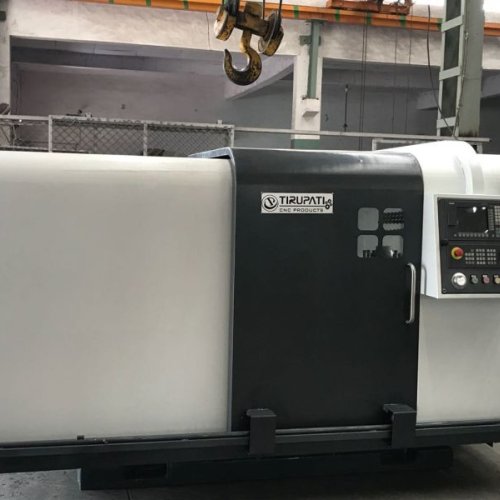

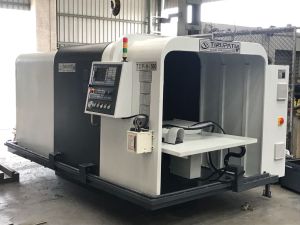

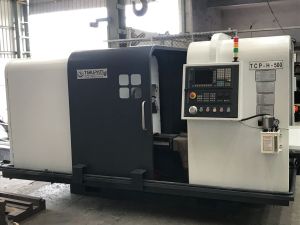

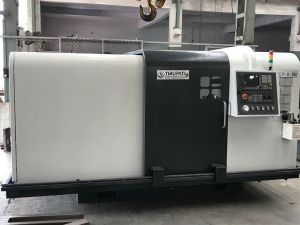

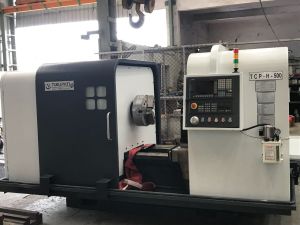

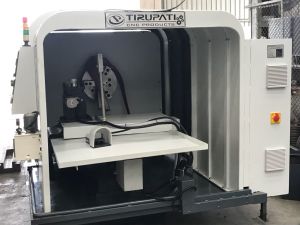

TCP-HX-600-3000MM CNC Lathe Machine

We offer TCP-HX-600-3000MM CNC Lathe Machine to our clients.

Capacity:

• Maximum Turning Diameter: 800 mm
• Standard Turning Diameter: 600 mm
• Turning Length: 3000 mm
• Width of Bed: 600 mm
• Height of Center: 500 mm

Spindle:

• Spindle Nose: A2-8
• Max. Bar Capacity (In Hollow Chuck): 70 mm
• Spindle speed (Max.) 600 RPM
• Spindle Motor Power: 20 HP
• Standard Power Chuck Size: 400 x 3 Jaw (Closed  Chuck)

Axis:

• X-Axis Stroke: 400 mm
• X-Axis Rapid: 6m/Minute.
• X-Axis Guideways: Box Type
• Z-Axis Stroke: 300+25 mm
• Z-Axis Rapid 8m/Minute.
• Z-Axis Guideways: Hardened And Ground

Tooling:

• Turret Make: Pragati
• No. of Station: 4
• Maximum Boring Bar Diameter: 32 mm
• Turning Tool Size: 25 x 25 mm

Lubrication System:

• Auto

Tailstock:

• Tailstock Quill Travel: 200 mm
• Tailstock Quill Diameter: 75 mm
• Tailstock Quill Taper: MT-5

General:

• Controller: Siemens/Fanuc
• Base Type: Cimoga
• Overall Dimension (L x W x H): 3400 x 2150 x 2000 mm
• Overall Weight: 4500 Kg
• Accuracy: 0.05
