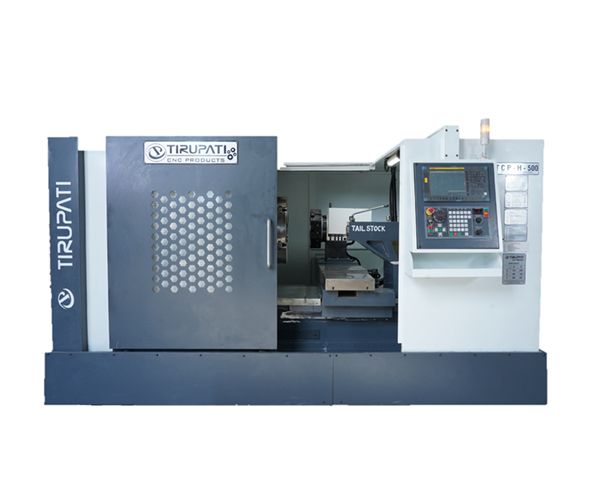

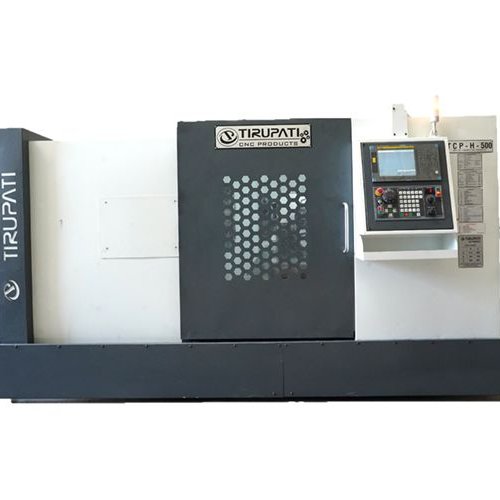

TCP-H-500L CNC Lathe Machine
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Driven Type | V-belt or Geared |
| Usage/Application | Industrial |
| Voltage | 415V |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Brand Name
TCP
Country of Origin
India
Type
CNC
Optional Equipments :
- Hollow Chuck (hydraulic / Pneumatic / Manual)
- Turning Length as per Requirement.
- 8 / 12 Station Turret
- Lm Guideways Available
- Servo Motor in Spindle
- Stabilizer
- Steady Rest (manual / Hydraulic)
- External & Internal Grinding Attachment
- upto 330mm Through Hole in Spindle Available
Specifications
| CAPACITY | |
| MAXIMUM TURNING DIAMETER | 800 mm |
| STANDARD TURNING DIAMETER | 600 mm |
| TURNING LENGTH | 300 mm To 3000mm |
| WIDTH OF BED | 600 mm |
| HEIGHT OF CENTER | 500 mm |
| SPINDLE | |
| SPINDLE NOSE | A2-8 |
| MAX. BAR CAPACITY(In Hollow Chuck) | 70 mm |
| SPINDLE SPEED (MAX.) | 600 RPM |
| SPINDLE MOTOR POWER | 20HP |
| STANDARD POWER CHUCK SIZE | 400X3 JAW(CLOSED CHUCK) |
| AXIS | |
| X-AXIS STROKE | 400 mm |
| X-AXIS RAPID | 6 m/min |
| X-AXIS GUIDEWAYS | BOX TYPE |
| Z-AXIS STROKE | 300 mm To 3000mm |
| Z-AXIS RAPID | 8 m/min |
| Z-AXIS GUIDEWAYS | HARDENED AND GROUND |
| TOOLING | |
| TURRET MAKE | PRAGATI |
| NO. OF STATION | 4 |
| MAXIMUM BORING BAR DIAMETER | 50 mm |
| TURNING TOOL SIZE | 25X25 mm |
| LUBRICATION SYSTEM | |
| LUBRICATION SYSTEM | AUTO |
| TAILSTOCK | |
| TAILSTOCK | Optional |
| TAILSTOCK QUILL TRAVEL | 200 mm |
| TAILSTOCK QUILL DIAMETER | 75 mm |
| TAILSTOCK QUILL TAPER | MT-5 |
| GENERAL | |
| CONTROLLER | SIEMENS / FANUC / MITSUBISHI |
| BASE TYPE | PLANO |
| ACCURACY | 0.05 |
